Aluminum fitting-5083,6061

5083 – With excellent corrosion resistance and weldabilitytogether with high strength,this alloy was designed for welded structures requiring maximum joint strength andefficiency.Can be anodized for increased corrosion resistance, but does not lend itself to decorative applications. Not meant to be a machining alloy, but can be machined fairly well with proper preparation. Because of its relatively high magnesium content,the workability rating is fair. Typical end uses are large marine craft, containers, railroadcars, structurals,and elevator cars.
6061 – This is a popular general-purpose alloy. Very good corrosion resistance and finishability plus excellent weldability and a strength level approximating that of mild steel. Machinability is good and, in the annealed state, its workability carries a high rating, staying at the “good” level if heat-treated without aging. Typical end uses are
aircraft landing mats, large and small marine vessels, structural architectural parts, storage tanks, and highway signs

7075 – One of the highest strength, commercially available alloys with fair corrosion resistance and machinability. Low workability rating and welded only by the resistance process. Typically used as aircraft skins, cowls, and structures

AL 6061 T6 Pipe fitting
pipe-fitting-45 degree-elbow
pipe-fitting-45 degree-elbow

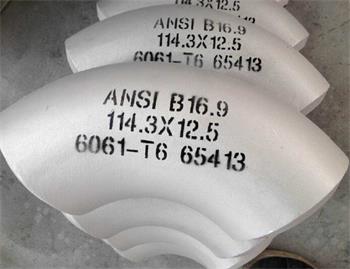

Al 6061 T6 Elbow Al 6061/5083 T6 Flange
pipe-fitting-45 degree-elbow
pipe-fitting-45 degree-elbow
Al 6061/5083 T6 Flange Al 6061/5083 T6 Flange
pipe-fitting-45 degree-elbow
pipe-fitting-45 degree-elbow
Al 6061/5083 T6 B241 ELBOW

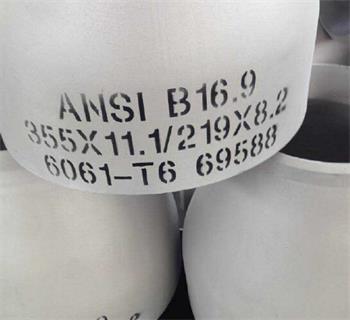

Al 6061/5083 B241 T6 reducer
