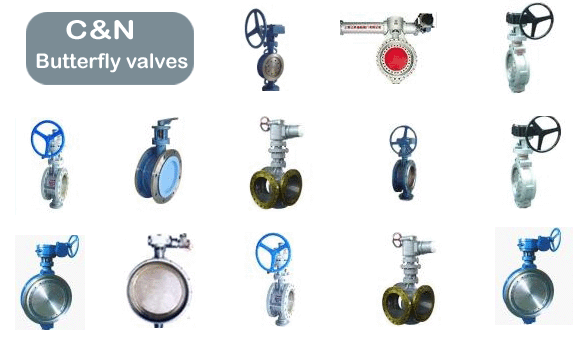

Butterfly valve
A butterfly valve is a type of flow control device, typically used to regulate a fluid flowing through a section of pipe. The valve is similar in operation to a ball valve . A flat circular plate is positioned in the center of the pipe. The plate has a rod through it connected to an actuator on the outside of the valve. Rotating the actuator turns the plate either parallel or perpendicular to the flow. Unlike a ball valve, the plate is always present within the flow, therefore a pressure drop is always induced in the flow regardless of valve position.
Features |
Type |
wafer type butterfly valve PN10/PN16 EPDM seat lever handle
wafer type butterfly valve PN10/PN16 PTFE seat gear operate
lug type butterfly valve soft seat gear operate
wafer type butterfly valve soft seat Pneumatic actuator
wafer type butterfly valve soft seat Electric actuator
Wafer type butterfly valve elastic metal seat pneumatic actuator
wafer type butterfly valve multi-level hard sealed
Socket weld butterfly valve multi-level hard sealed
|
Design std. |
as per api 6d |
Design std. |
As per AWWA C 504, BS 5155 & API 609 |
Face To Face |
BS – 5155 , AWWA-C 504 |
End Connection |
Wafer Type, Lugs Type, Flange Type |
Testing STD |
As per API 598, ISO 5208 |
Size |
40 TO 600 M.M. |
|
|
Material |
Body |
wcb,cf8,cf8m, etc |
Body liner |
NITRILE,EPDM, VITON,PTFE |
Disc |
13% cr., ss 304,ss 316 |
Dimensions |
150 # |
Size m.m |
F |
H |
L |
40 |
37 |
98 |
290 |
50 |
43 |
122 |
290 |
65 |
46 |
130 |
290 |
80 |
46 |
130 |
290 |
100 |
52 |
160 |
290 |
150 |
56 |
180 |
290 |
200 |
60 |
205 |
290 |
250 |
68 |
280 |
250 |
300 |
78 |
310 |
250 |
350 |
78 |
320 |
250 |
400 |
102 |
375 |
250 |
500 |
127 |
425 |
250 |
600 |
154 |
680 |
250 |
|
|
