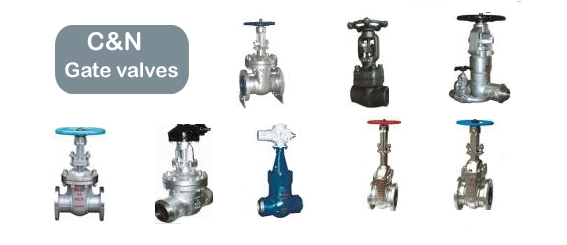

Gate valve
A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar.
Gate valves normally have flanged ends which are drilled according to pipeline compatible flange dimensional standards. Gate valves are typically constructed from cast iron, ductile iron, cast carbon steel, gun metal, stainless steel, alloy steels, and forged steels.
Features |
| Type |
Butt-welding gate valve
Stainless steel valve
rising stem Gate valve Cast Iron Body JIS/DIN/ANSI flange end
no-rising stem gate valve cast iron body JIS/DIN/ANSI flange end
Forged gate valve 800LB~1500LB NPT/SW
Pressure-seal gate valve 900LB~2500LB |
| Design std. |
as per api 6d |
| Face to face |
as per asme b 16.10 |
| Flange end |
as per asme b 16.5 |
| Testing std |
as per api 598 |
| Size |
15 to 300 m.m. |
|
|
Material |
| Body |
wcb,cf8,cf8m, etc |
| Gate |
ca-15,cf8,cf8m, etc |
| Seat |
ptfe glass or carbon filled ptfe |
|
|
Dimension |
|
150# |
300# |
| Size m.m. |
F/f |
H |
øWH |
F/f |
H |
øWH |
| 50 |
178 |
375 |
175 |
216 |
409 |
216 |
| 65 |
190 |
455 |
175 |
241 |
500 |
216 |
| 80 |
203 |
472 |
200 |
282 |
506 |
230 |
| 100 |
229 |
577 |
225 |
305 |
605 |
254 |
| 150 |
267 |
808 |
250 |
403 |
842 |
380 |
| 200 |
292 |
978 |
290 |
419 |
1030 |
450 |
|
