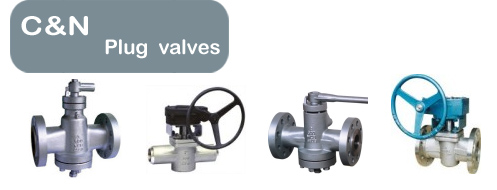

Plug valves are valves with cylindrical or conically-tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical.
Features |
Type |
|
Design std. |
as per api 6d, bs 5351 |
Face to face |
as per asme b 16.10 |
Flange end |
as per asme b 16.5 |
Testing std |
as per api 598, iso 5208 |
Size |
15 to 300 m.m. |
|
|
Material |
Body |
wcb,cf8,cf8m, etc |
Gate |
ca-15,cf8,cf8m, etc |
Seat |
ptfe glass or carbon filled ptfe |
|
|
Dimensions |
150 # |
300 # |
Size m.m |
F/f |
H |
L |
Wt * |
F/f |
H |
L |
Wt * |
15 |
108 |
52 |
130 |
1.35 |
139.7 |
55 |
155 |
5 |
20 |
118 |
57 |
130 |
1.7 |
152.4 |
70 |
155 |
9 |
25 |
127 |
68 |
157 |
2.3 |
165.1 |
75 |
155 |
12 |
40 |
165 |
90 |
228 |
4.5 |
190.5 |
100 |
165 |
15 |
50 |
178 |
100 |
249 |
7.0 |
215.9 |
150 |
165 |
19 |
65 |
19 |
110 |
300 |
11.5 |
241.3 |
160 |
260 |
27 |
80 |
203 |
140 |
300 |
14.5 |
282.6 |
175 |
470 |
36 |
100 |
229 |
180 |
351 |
24 |
304.8 |
200 |
500 |
65 |
150 |
266.7 |
248 |
350 |
60 |
403.2 |
225 |
525 |
105 |
200 |
292.1 |
440 |
440 |
140 |
419.1 |
275 |
600 |
200 |
250 |
- |
- |
- |
- |
457.2 |
280 |
650 |
290 |
|
